Main Tee-Center Black Line
Tee 32*24*3660*0.25mm
| Machine components | |||
|---|---|---|---|
| Name | Unit | Qty | |
| Decoiler | set | 2 | manual |
| Press punching mold | Set | 5 | 2 sets of heading molds, 3 sets of punching molds, the knife edge material SKD11 heat treatment 58 degrees |
| Hydraulic station | set | 1 | 7.5KEDC24V solenoid valve (Huade brand) and supporting motor |
| Receive table | set | 1 | Loading capacity 1.5 ton |
| PLC electric cabinet | set | 1 | Connis independent research and development supports international communication ports |
| Low voltage electrical | set | 1 | Siemens |
| Control system | set | 1 | Kunlun TPC7062TX[KX] |
| Guide rail | set | 2 | Precision guidance, Taiwan CSK brand |
| Ball screw | set | 2 | Precision guidance, 4040 Taiwan CSK brand |
| Servo motor | set | 3 | Yichuan 2.3kw servo motor (2 units) 0.75kw servo motor (1 set) |
| Cooling system | set | 1 | Air cooling |
| Speed | 25m/min | ||
| Painting device | set | 1 | Auto |
| Dry device | set | 1 | Auto |

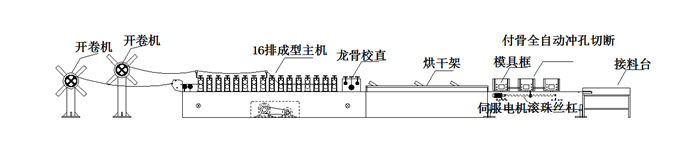

Working process
Decoiler → roll forming machine → straighten product → paint → dry → cut → make stitches → punch holes → receive product
| Machine parameters | ||
|---|---|---|
| Decolier | Loading capacity | 1.5tons |
| Quantity | 2 sets | |
| Main forming part | Thickness | 0.11-0.3mm |
| Material | GI/ PPGI | |
| Roller station | 16 | |
| Roller material | GCR12 with tempering and grinding Material Cr12, bore diameter (rolling shaft diameter) Φ40, minimum rolling outer diameter Φ90, heat treatment hardness HRC58-62, symmetry control within the range of 0.05MM, sharing 16 sets of wheel design | |
| Shaft diameter | 40mm | |
| Shaft material | Solid 45# steel with tempering and hardening | |
| Speed | 30m/min | |
| Power | 7.5KW | |
| Motor | Shanghai Lichao/Guomao (China famous brand) | |
| Drive mode | By 1 inch chain | |
| voltage | As request | |
| Machine frame | 20mm Nodular cast iron | |
| Shearing way | Hydraulic method | |
| Blade material | CR Mov 12 with tempering 58-60HRC | |
| Transmission | Chain | |
| Feeding system | Material is Cr12, heat treatment hardness HRC58-62, synchronous positioning, flexible adjustment at both ends. | |
| Punching mold | The material is SKD11, the heat treatment hardness is HRC58-62, the template is finely ground, and it is processed by middle wire.. | |
| Screen brand | Delta (made in Taiwan) | |
| control system | Frequency converter | Delta (made in Taiwan) |
| Main electric apparatus | Schneider (Franch Brand) | |
| Encoder | Omorn (Japanese brand) | |
| Servo motor | YIICHUAN(made in Taiwan) | |
| Langue | English (as request) | |
| Function | To control speed, cutting length ,batch quantity | |
| Hydraulic station | 7.5kw | |
| Run-out table | Length | 1.5m (as request) |
| Material | 1-1.5mm C stud | |
| Loading capacity | 1.5 tons | |
