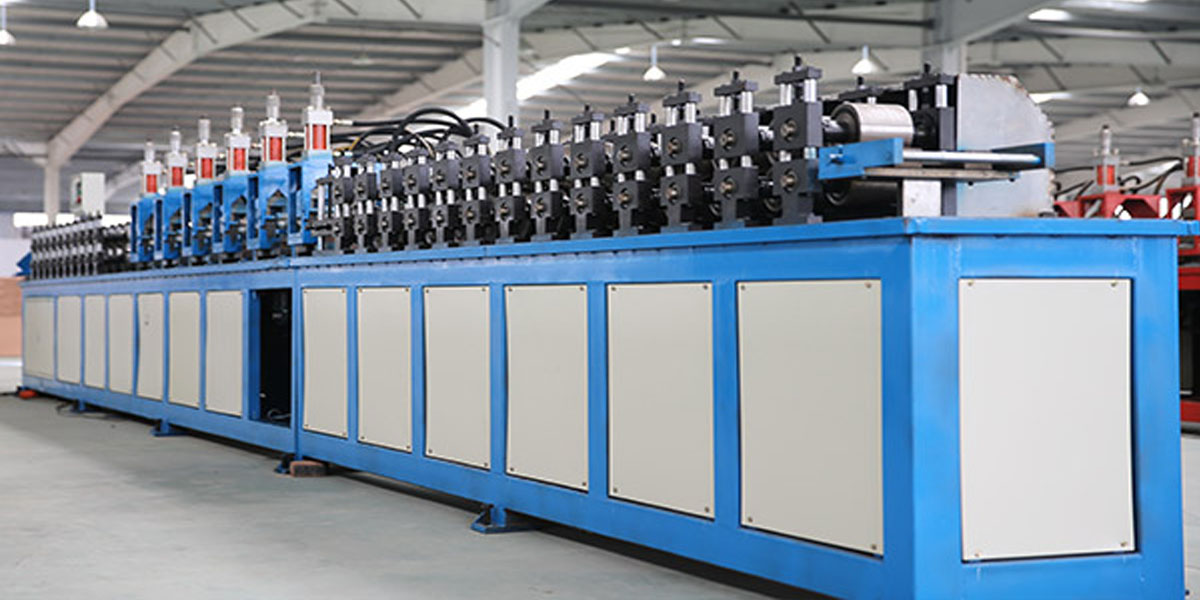

Ceiling Angle
| Machine parameters | ||
|---|---|---|
| Decolier | Loading capacity | 1.5 tons |
| Quantity | 1 sets | |
| Main forming part | Thickness | 0.2-0.3mm |
| Material | GI/ PPGI | |
| Roller station | 16 | |
| Roller material | GCR12 with tempering and grinding Material Cr12, heat treatment hardness HRC58-62, | |
| Shaft diameter | 40mm | |
| Shaft material | Solid 45# steel with tempering and hardening | |
| Speed | 25m/min | |
| Power | 7.5KW | |
| Motor | Shanghai Lichao/Guomao (China famous brand) | |
| Drive mode | By 1 inch chain | |
| voltage | As request | |
| Machine frame | 20mm Nodular cast iron | |
| Shearing way | Hydraulic method | |
| Blade material | CR Mov 12 with tempering 58-60HRC | |
| Transmission | Chain | |
| Feeding system | Material is Cr12, heat treatment hardness HRC58-62, synchronous positioning, flexible adjustment at both ends. | |
| control system | Frequency converter | Delta (made in Taiwan) |
| Screen brand | Delta (made in Taiwan) | |
| Main electric apparatus | Schneider (Franch Brand) | |
| Encoder | Omorn (Japanese brand) | |
| Servo motor | YIICHUAN(made in Taiwan) | |
| Langue | English (as request) | |
| Function | To control speed, cutting length ,batch quantity | |
| Hydraulic station | 4.5kw | |
| Run-out table | Length | 1.5m (as request) |
| Material | 1-1.5mm C stud | |
| Loading capacity | 1.5 tons | |
