Fiber Laser Cutting Machine – RD-CF3015B

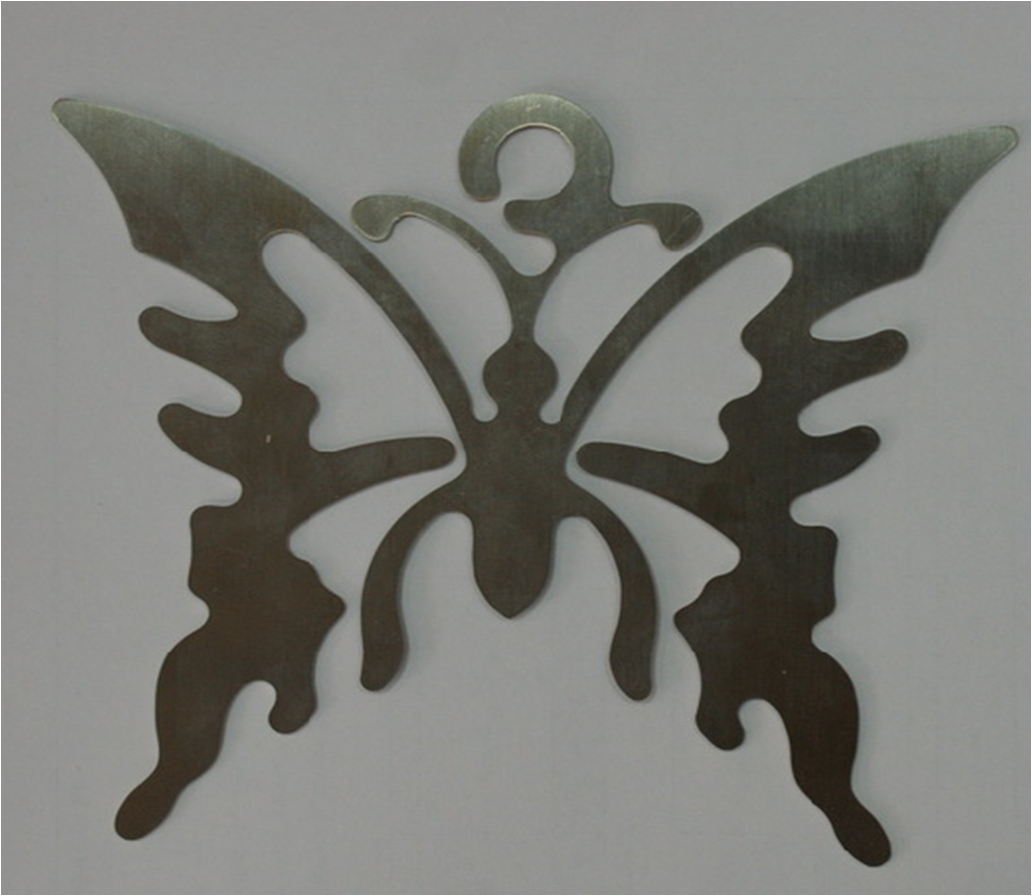

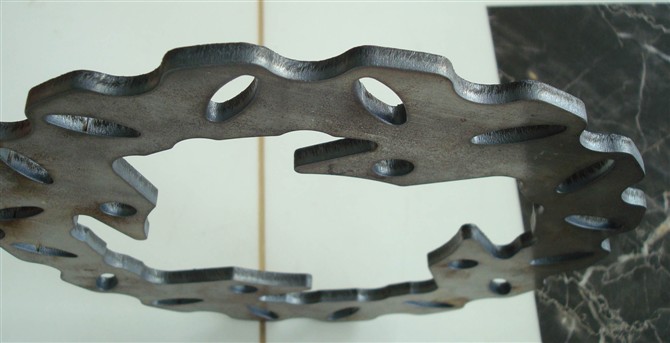

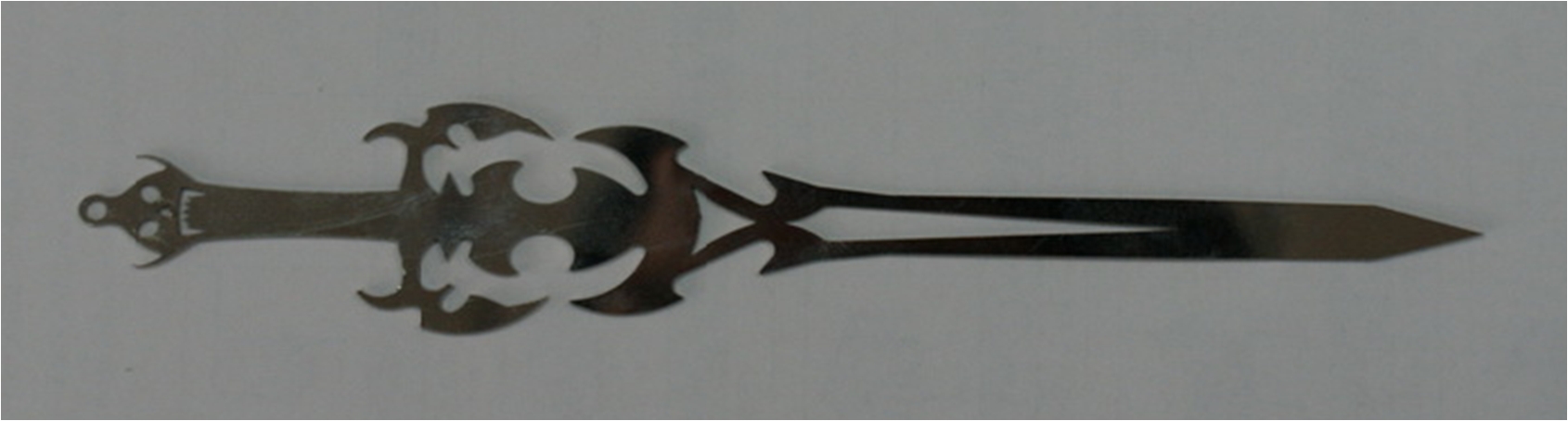

Specially used for cutting 0.5-6mm (300W 0.5-3mm) carbon steel, 0.5-5mm (300W 0.5-2mm) stainless steel, 0.5-2mm aluminum, 0.5-1mm brass and other metal material, The effect of cutting speed and cutting section of superior performance.
Features
One whole set design, it can be assembled quickly, cover small area, save space.
Double driver systems with precision gear and rack. Rapid positioning.
The exchange workbench, automatic blanking, save operation time and improve production efficiency.
| Laser Power | 300W/500W/800W |
|---|---|
| Laser Source | IPG (Germany) nLight (USA) Max/Recus (Chinese) |
| Laser Wavelength | 1064nm |
| Working Size | 1500×3000 mm |
| Max. Positioning | 60m/min |
| Max. Accelerated | 0.5G |
| X/Y-axis positioning accuracy | +- 0.5mm |
| X/Y-axis repeating positioning accuracy | +- 0.3mm |
| Working Voltage | 220V 50HZ |
| Total Power | <10KW |
| Machine Weight | 3500K.G. |
| Machine Outer Dimensions | 4435x2877x1540 mm |
| Transmission | Previse pinion and rack, dual-drive transmitting |
