Fiber Laser Cutting Machine – RD-CF3015C

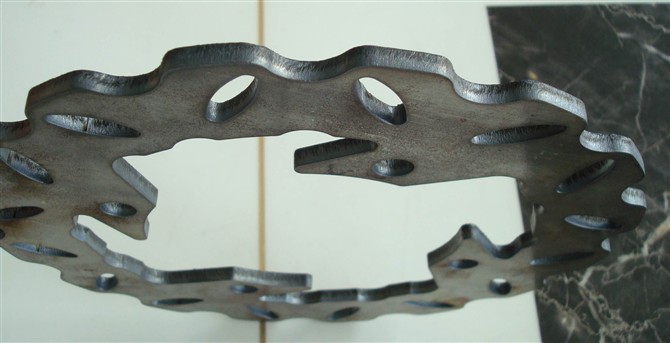

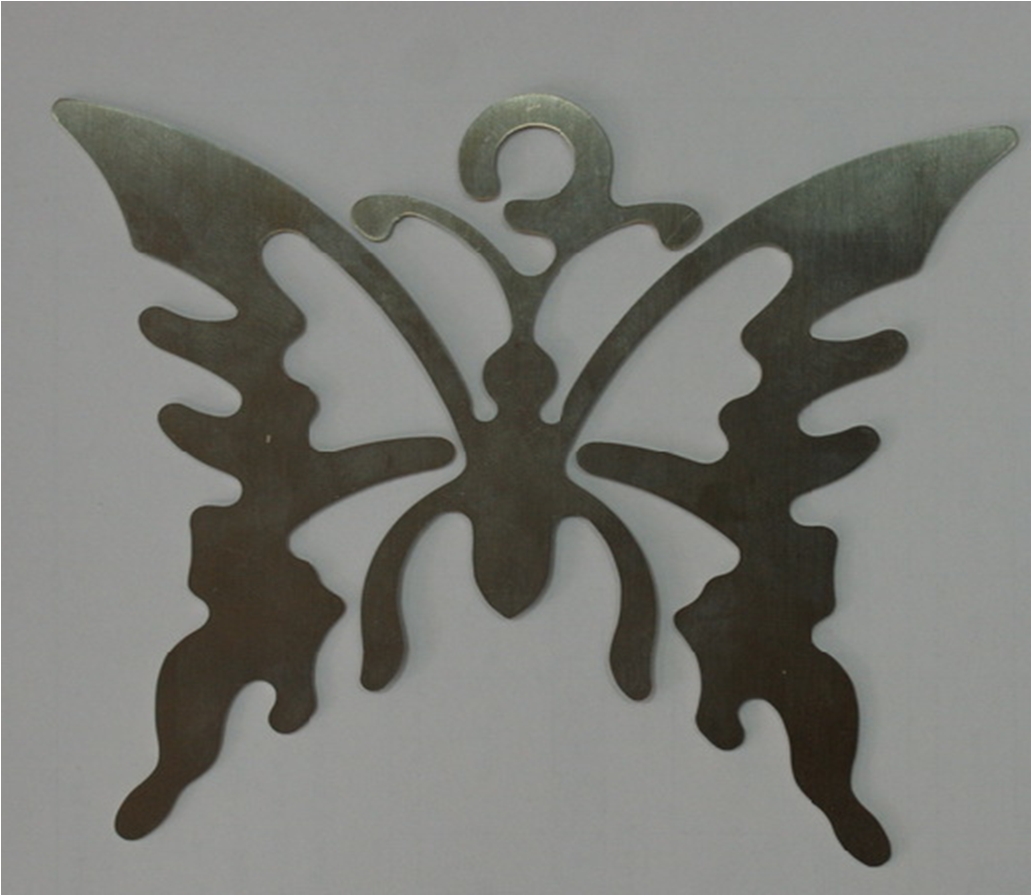

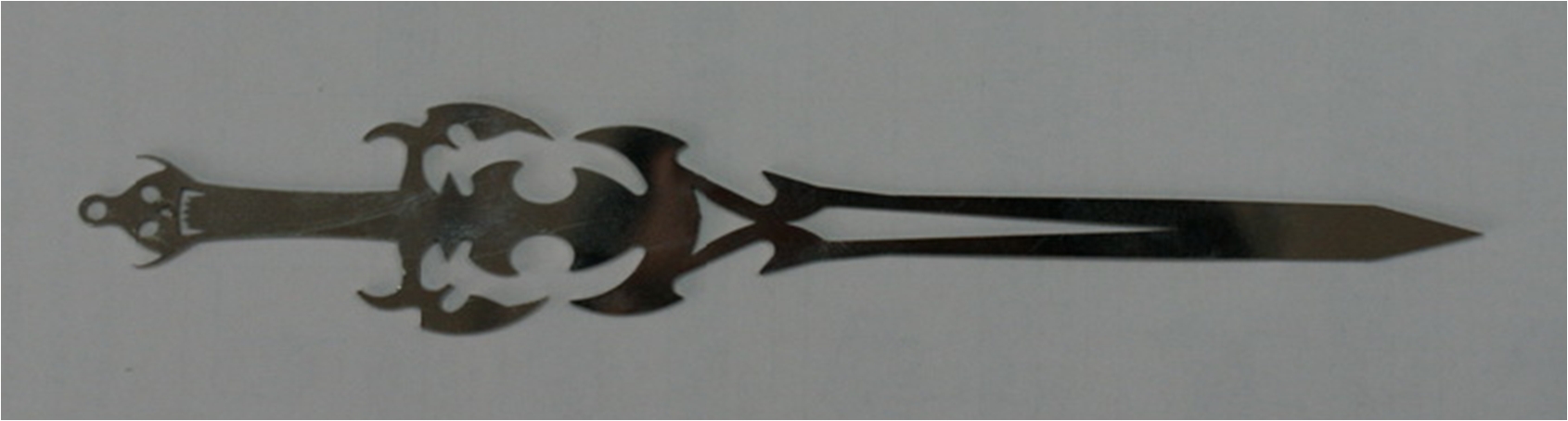

Specially used for cutting 0.5-12mm carbon steel, 0.5-6mm stainless steel, 0.5-3mm aluminum, 0.5-2mm brass and other metal material, The effect of cutting speed and cutting section of superior performance.
Features
Used the import original laser machine in the United States, stable performance, quality assurance.
The whole machine is designed simply, the outward appearance is beautiful and easy, saves the customer investment costs.
The exchange workbench, automatic blanking, save operation time and improve production efficiency.
| Laser Power | 1000W/2000W |
|---|---|
| Laser Source |
IPG (Germany) nLight (USA) |
| Laser Wavelength | 1064nm |
| Working Size | 1500×3000 mm |
| Max. Positioning | 120m/min |
| Max. Accelerated | 1.5G |
| X/Y-axis positioning accuracy | +- 0.5mm |
| X/Y-axis repeating positioning accuracy | +- 0.3mm |
| Working Voltage | 380V 50HZ |
| Total Power | <20KW |
| Machine Weight | 8000K.G. |
| Machine Outer Dimensions | 8830x2895x2300 mm |
| Transmission | Previse pinion and rack, dual-drive transmitting |
